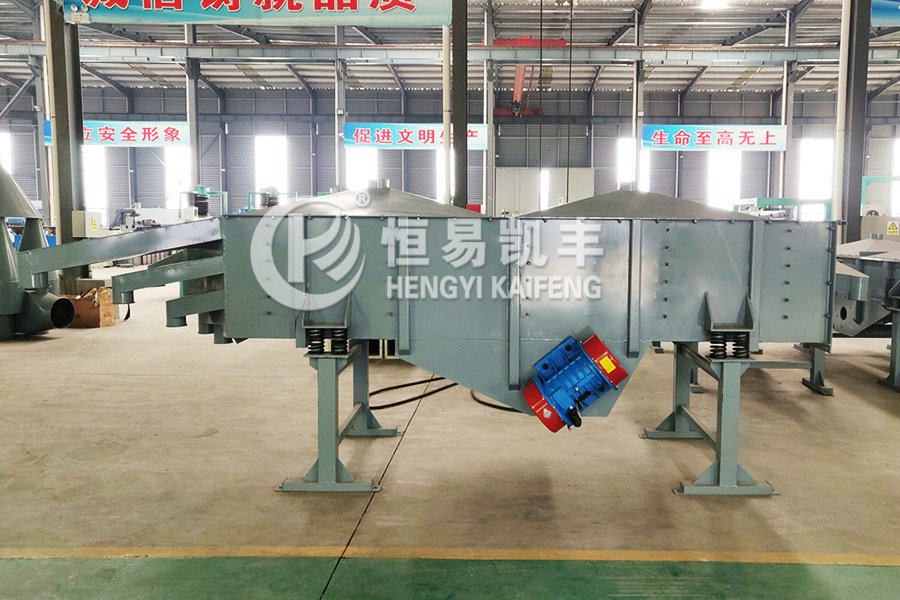

Linear vibrating screen
TQLZ linear vibrating screen is mainly used for screening and grading of granular activated carbon materials. It is widely used in plastics, chemical industry, medicine, building materials, grain, carbon, chemical fertilizer and other industries. The equipment has the characteristics of simple structure, stable operation, low noise and low energy consumption. When the vibrating screen is working, the two motors rotate in the opposite direction synchronously, causing the exciter to produce the reverse exciting force, forcing the screen body to drive the screen to move longitudinally, so that the material on the screen is thrown forward periodically by the exciting force, so as to complete the material screening operation.
| 參數(shù) parameter 型號(hào) Model | 篩框長度（mm） Screen frame length | 配套動(dòng)力（Kw） Power | 重量（Kg） Weight | 外形尺寸（mm） Appearance size |
| TQLZ-80 | 2m | 0.75*2 | 800 | 2800*1100*1400 |
| 3m | 1.1*2 | 900 | 3800*1100*1400 | |
| TQLZ-100 | 3m | 1.1*2 | 900 | 3800*1300*1400 |
| 3.5m | 1.5*2 | 100 | 4300*1300*1400 | |
| 4m | 1.5*2 | 1100 | 4800*1300*1500 | |
| 5m | 2.2*2 | 1200 | 5800*1300*1600 | |
| 6m | 2.2*2 | 1300 | 6800*1300*1600 | |
| TQLZ-120 | 3.5m | 2.2*2 | 1400 | 4300*1500*1400 |
| 4m | 2.2*2 | 1500 | 4800*1500*1400 |
